Product
Name: |
|
Series
2000 Horizontal Slider (HS) Dry Erase White Board |
| Description: |
|
The
Series 2000 HS unit is comprised of several Series 2000 Porcelain
Magnetic Boards with one or two sliding panels that move in front of a
rear fixed board. The rear fixed board is usually double the
length of the front sliding board(s) and is fabricated from two splined
boards. Front boards are mounted in a aluminum nylon lined bottom
track, and hang from a nylon ball bearing caster top mount system.
The unit is complete with a marker ledge. |
| Application: |
|
Series
2000 Horizontal Sliders are used when multiple boards are
required but a limited space is available. |
| Board
Type: |
|
Series
2000 Porcelain Magnetic. |
Series 2000 Dual HS
Sliding Board Track Detail
 |
|
Sizes: |
|
Series
2000 Horizontal sliders are available in any length configuration up to
24'. Board height is 4'. Single Sliders (denoted by
Series 2000 1HS) have a single track and one sliding board. Dual
Sliders (Series 2000 2HS) have a dual track and two sliding front

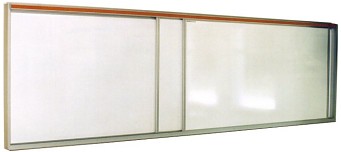

boards. (Unit shown in picture is a Dual slider unit with a 16' fixed
back board and two 8' sliding front boards) |
| Accessories: |
|
Series
2000 HS Boards are supplied with all required mounting accessories
Cardholder
Magnets & other magnets may be used as well as other
items such as sheet grippers & styrene sheet holders, as noted in Accessories. |
| Other
Options: |
|
Series
2000 Horizontal Sliding units may be customized

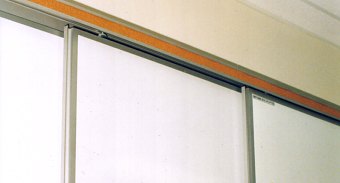

to unique scheduling or tracking boards centers. Top Cork tack rails are
available as an accessory (shown in picture)
|
