Panasonic Electronic Copy Boards - US Models

Plain Paper Panaboard Model UB-5315
Panasonic Electronic Copy Board - Panaboard model UB-5315

View Panasonic Brochure
Info for the UB Model Panaboards
(click to enlarge)
UB Panaboard Brochure Page 1 UB Panaboard Brochure Page 2 UB Panaboard Brochure Page 3 UB Panaboard Brochure Page 4
UB Panaboard Pdf Files    #1    #2


Model KX-BP735 Specs
Brochure & specs for 735
Model Panaboard
(only 735 model available in the USA)
Panasonic Panaboard Brochure Page 1   Panasonic Panaboard Brochure Page 2   Panasonic Panaboard Brochure Page 3   Panasonic Panaboard Brochure Page 4
Download Brochure (475kb zip)
Product Name: Panasonic Electronic Copy White Board - Panaboard
Description: Panasonic Panaboards have a  white Mylar Belt that acts as dry erase surface.  Pressing the print button causes the belt to rotate 180 degrees.  A rear mounted scanner images the written information and transfers it to the printer included and mounted below the board.  The Mylar belt is a continuous strip and gives the panaboard a front & back screen set (either screen may be rotated to board front).   Panaboards may be wall mounted or supplied with mobile stands.
Application: Panasonic Panaboards are typically used in boardrooms to enhance meetings or presentations and eliminate note taking.  A PC interface (optional on KX-BP735) allows the information to be saved as a PC file for later retrieval, print out, or e-mailing.  Panaboards may be customized for use as production schedules. When used on shop floors production numbers written in can be printed out or optionally sent to a PC with the touch of a button.
Board Type: Panasonic Electronic Copy White Boards have a continuous rotating mylar belt that has faint grid lines to aid in writing.
Sizes & Models: Panasonic Panaboards are available in Plain Paper and Thermal Paper Models (writing surface sizes H x W in inches)

     PLAIN PAPER PANABOARDS
1. UB-5315     (35.4x50.2)
2. UB-5815     (35.4x64.5)
3. KX-BP735  (35.4x55.1)
4. KX-BP800  (35.4x55.1)

 THERMAL PAPER PANABOARDS
     UB-5310    (35.4x50.2)

Note:  Model 735 Has a dual Length belt resulting in a 4 screen unit.  Model shown in picture is a UB-5315 with mobile stand.

For Information on the KX-BP800 Panaboard please see our section on Interactive Copy boards

Accessories: All Panasonic Panaboards are supplied with a 3 color marker/eraser set & starter print film (plain paper models) or starter thermal paper roll (thermal paper models).

Additionally all UB Model Panaboards are supplied standard with a wall mount kit, built in USB PC connection port & CD rom PC interface software.

Other accessories available include:

KX-B063 Wall Mount Kit (KX-BP Models)
KX-B061 Mobile Stand (KX-BP735 only)
UE-608005 Mobile Stand (UB Model)
KX-B081 Film Refill Kit (2 rolls/pack-yield
   300 pages/roll for KX-BP models only) or
   UG-6001 Film Refill Kit (for UB Model
   Panaboards)

PC Connection Accessories:
KX-B095 Interface Kit -(KX-BP735 only)

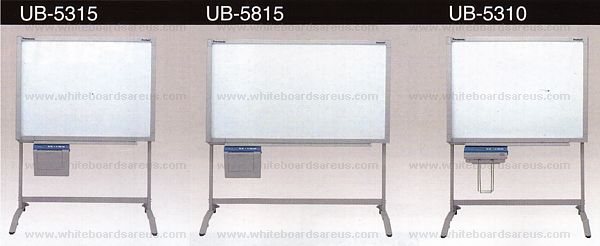

UB Series Panaboard Models
(shown with optional stand)
Panasonic Panaboard Models UB-5315, UB-5815, UB-5310

Why Consider a Panasonic Panaboard from White Boards Are Us ?

BEST PRICING AVAILABLE !!!
We specialize in Dry Erase Boards - It's all we do !!
Panasonic Copy Board Quality & Reliability - Second to no other brands
Available 2 year warranty - Industry best
Most Popular Electronic Copy Board Brand
Ease of use - no external computer or printer necessary
Range of models available to fit any need
Copy maps & blueprints by taping them to the board
(except 735)
Print multiple copies
Print both panels to a single sheet of paper
(except 735)
Contrast button for darker prints
Hook directly to
a PC (requires PC Interface for KX-BP735)


U.S. Pricing
Board Pricing with Warranty
Model 12 MONTH WARRANTY 24 MONTH WARRANTY
UB-5315 $ 1255 $ 1363
UB-5815 $ 1505 $ 1613
UB-5310 $ 1125 $ 1233
KX-BP800 $ 1964 $ 2072
KX-BP735 $ 1740 $ 1848
Available Accessories
KX-B061 Mobile Stand for KX-BP735 $ 199
KX-BP065 Mobile Stand (KX-BP800 only) $ 199
KX-B063 Wall Mounting Kit (all KX-BP) $   44
KX-BP081 Film Refill Kit - 2 rolls (all KX-BP) $   58
KX-BP082 Film Refill & cassette (all KX-BP) $   50
KX-BP095 PC Interface Kit (KX-BP735 only)  $ 295
UB608005 Stand for ALL UB Models $ 199
UG6001 Film Refill Kit-2 rolls - ALL UB Models $   45
                                            ------------Above Pricing in US Funds------------
Shipping Costs for a single board via UPS for models 5310/5315 are $ 68.00 (add
   $ 28.00 for UPS orders with UB608005 stand)
Shipping for all other models is $ 150.00 via LTL truck
Please Contact Us for shipping on multiple board orders
Accessories Shipped Free with Panaboard Purchase
For Items not listed above, or items for earlier panaboards please Contact Us
For more Information on KX-BP800 see our section on Interactive Copy boards
** For Shipping / warranty information for isolated areas please contact us.
                                           Prices subject to change without notice

Panaboards are second to none for Quality & Reliability.

Questions ?? - Call us !! - We're here to help you choose the right Electronic copy board!

For Canadian Models & Pricing - Please see our section on Canadian Panaboards

For more information or to Place an order - please send us an email or Call Us.Contact Us
